The VLX 138 Panoramic Sliding Door is what you install when you want the wall between your living room and your Long Beach backyard to disappear. It’s a luxury large-span slider built for homes where the view is the point: Naples Island waterfront, Belmont Shore patios, Bluff Park condos looking toward the ocean, mid-century Rancho Estates homes opening onto a pool. We’re Lightwell Windows Long Beach, an authorized ViewLux installation partner, and we’ve been putting these doors into Long Beach homes long enough to know exactly how they perform in our salt air and afternoon marine layer. If you’re pricing a panoramic slider for a remodel or new build, call us at (562) 912-3327 and we’ll give you a real number, not a brochure.

Call (562) 912-3327

Product Overview – VLX 138 Panoramic Sliding Door

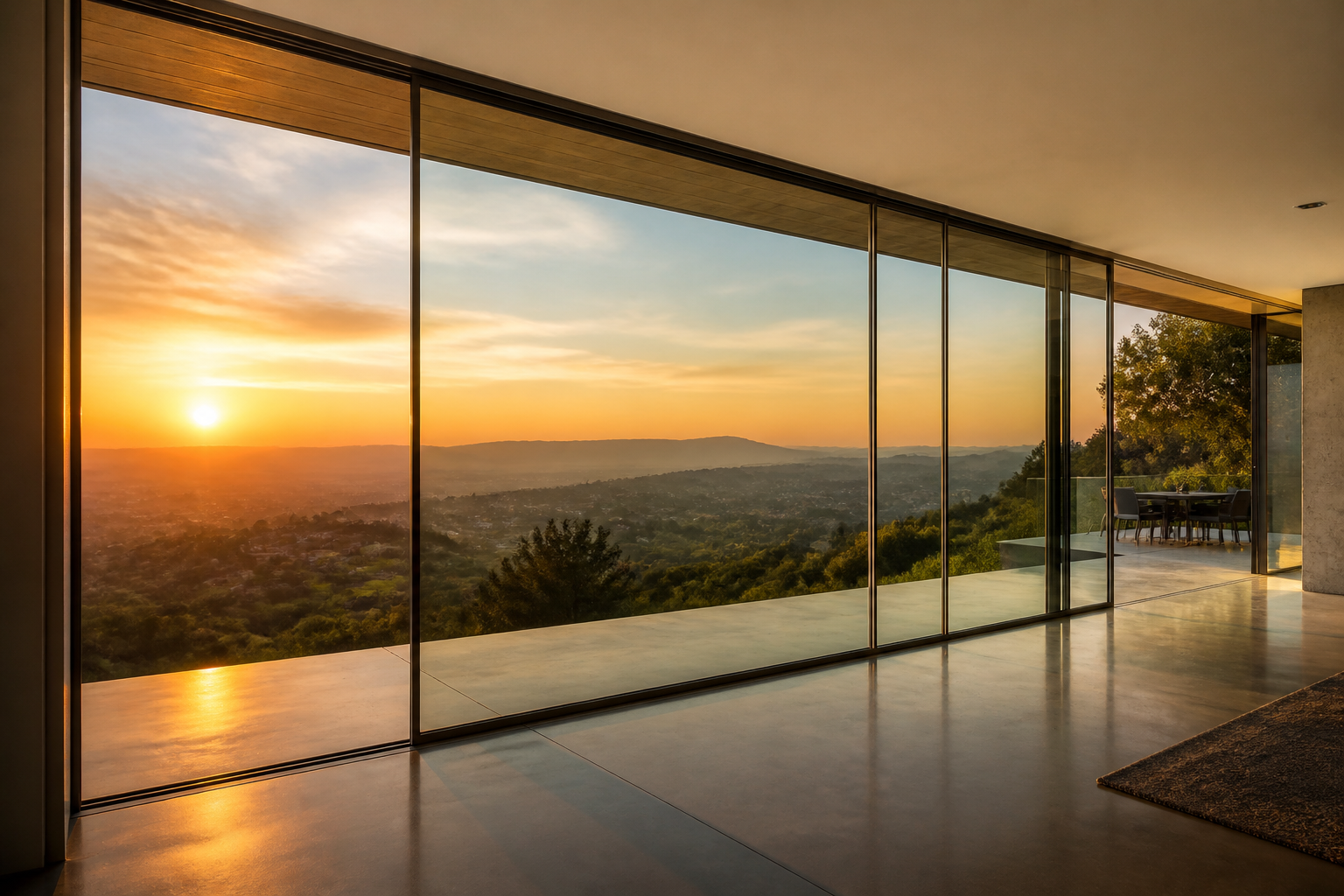

The VLX 138 is ViewLux’s flagship panoramic slider, and the engineering is centered on one idea: as much glass as possible, with as little frame as possible, moving as smoothly as a door three times its size has any right to move. The profile is slim enough that when the panels are closed, you see mostly glass. When they’re open, you see the opening, because the frames nest cleanly at the jamb instead of stacking in the middle of your sightline.

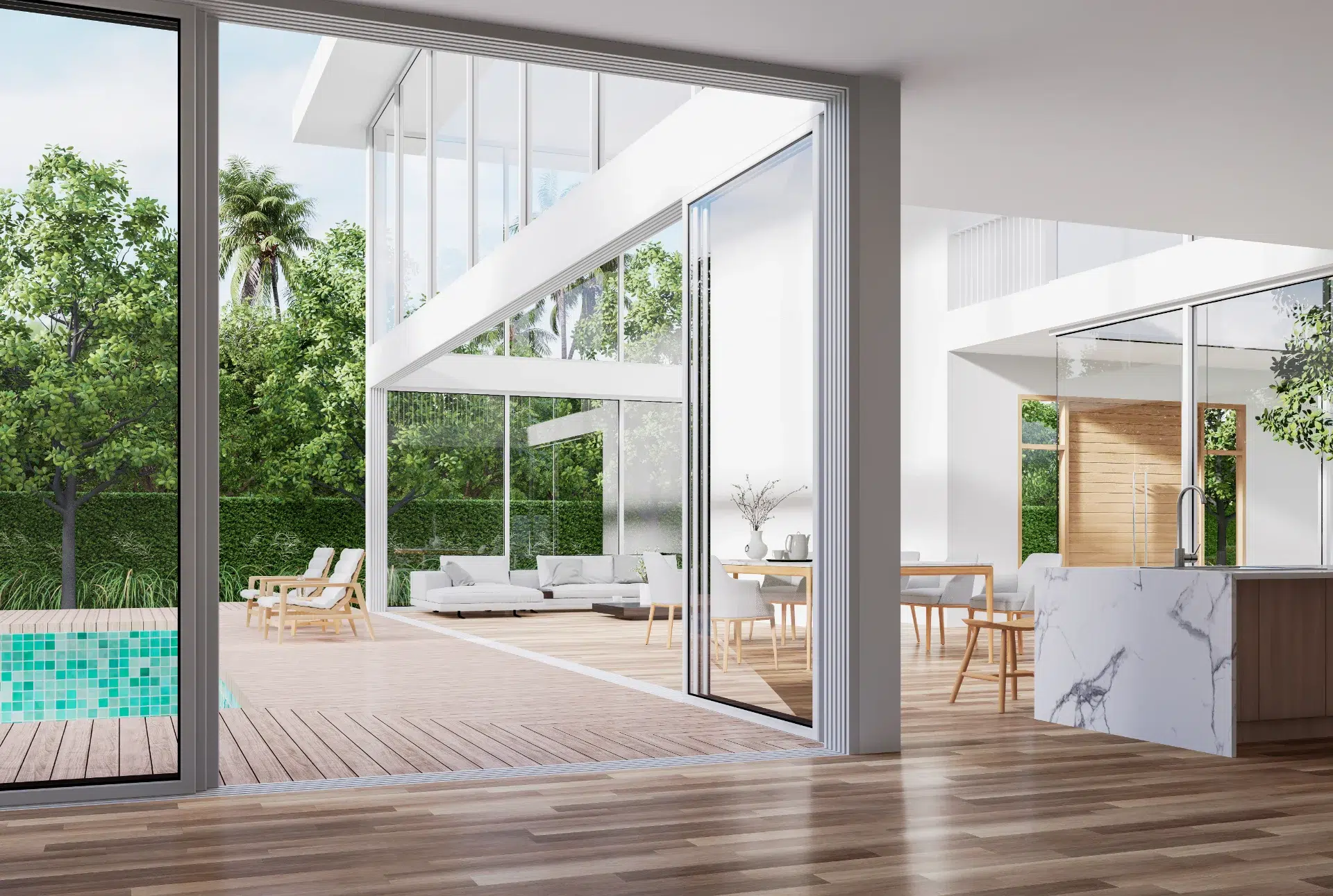

This is a door for people who have already decided they want an indoor-outdoor living setup and are now comparing their options. It suits single-story Long Beach homes where a 20- or 30-foot opening replaces a dated French door or a builder-grade slider. It suits second-story additions where the ocean view is only accessible from one wall. We’ve installed VLX 138 doors in Alamitos Heights living rooms facing the golf course, in Bixby Knolls remodels where the original 1960s floor plan finally got opened up, and in Long Beach Peninsula beach houses where the whole back wall is now glass.

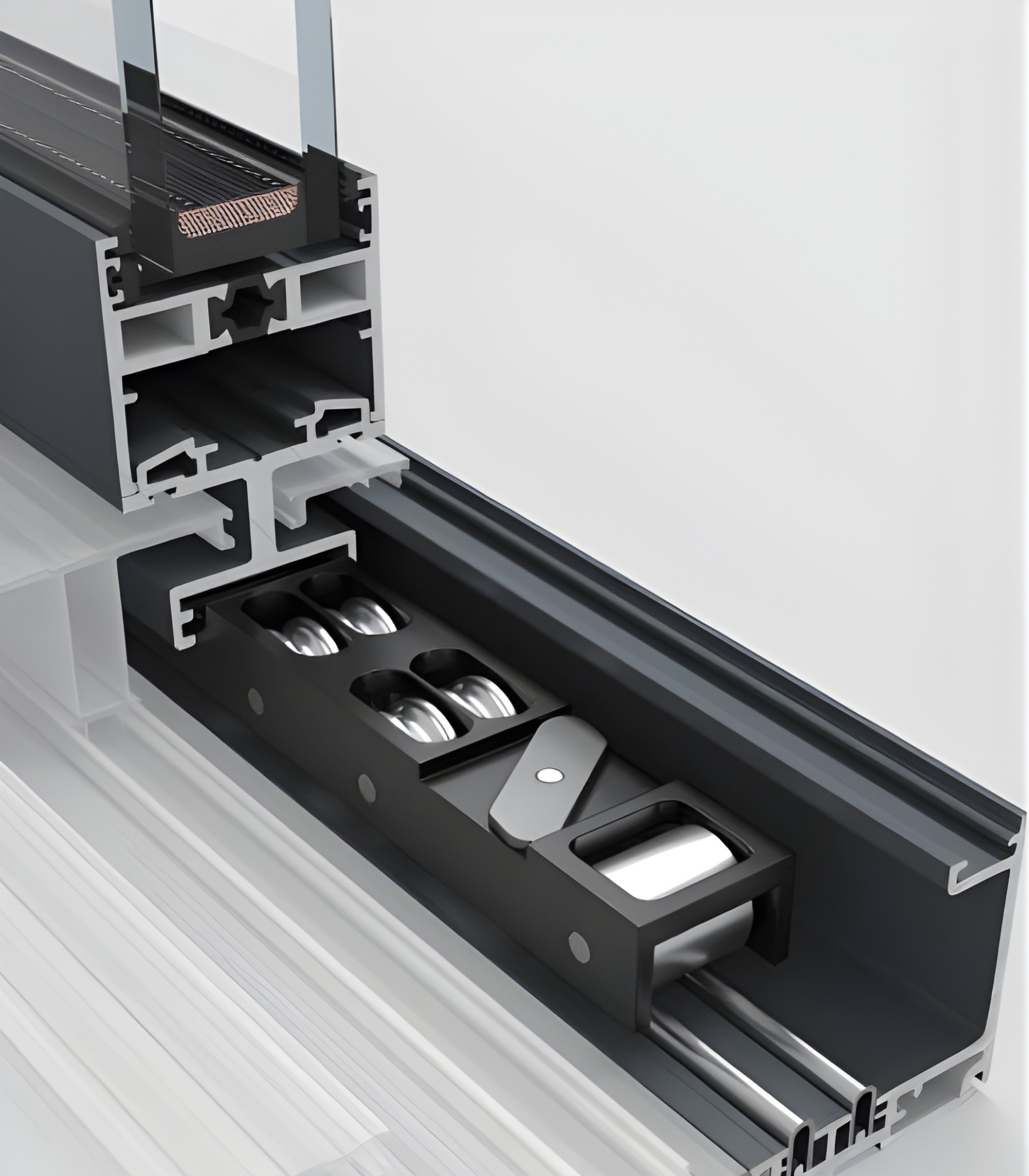

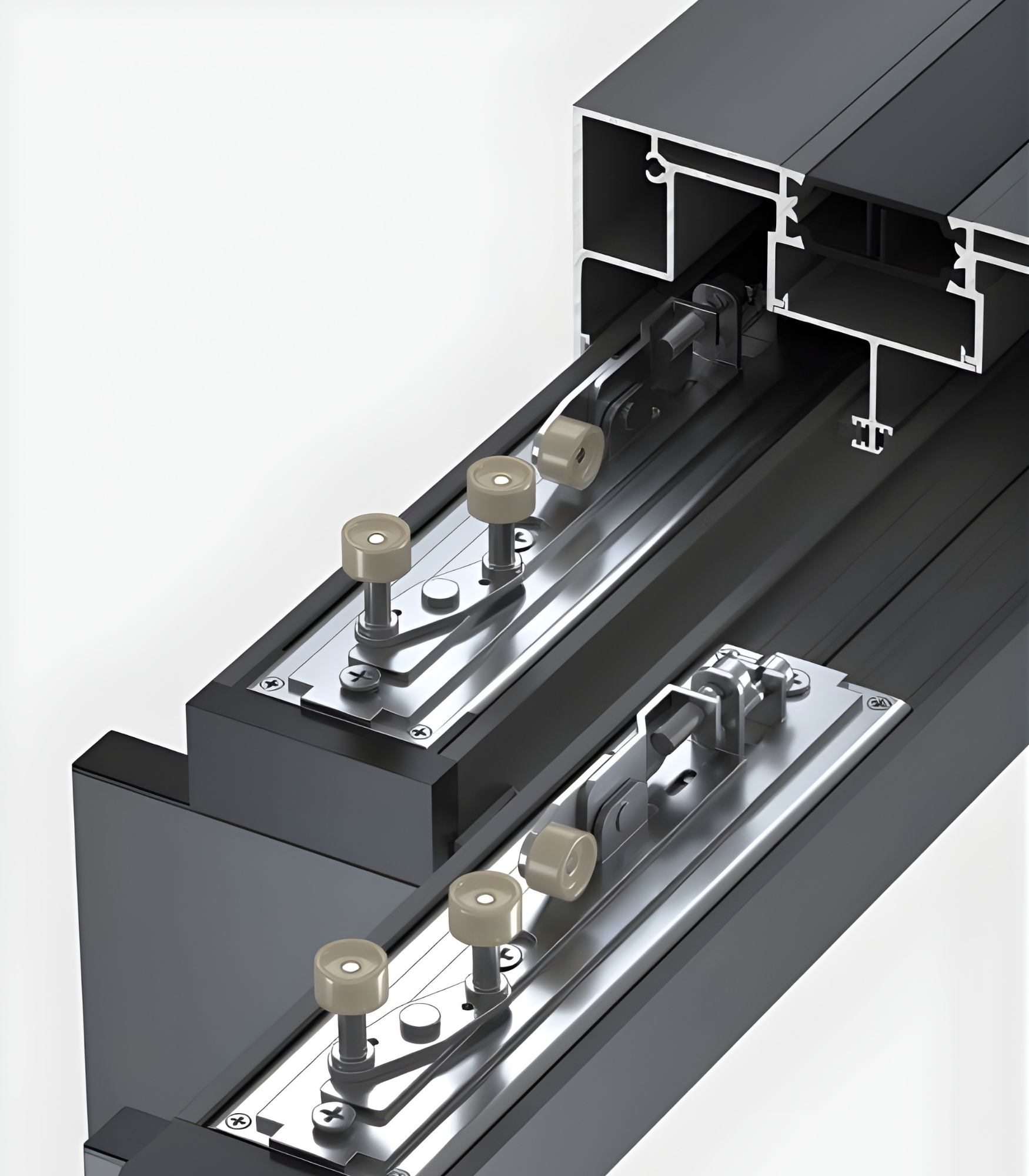

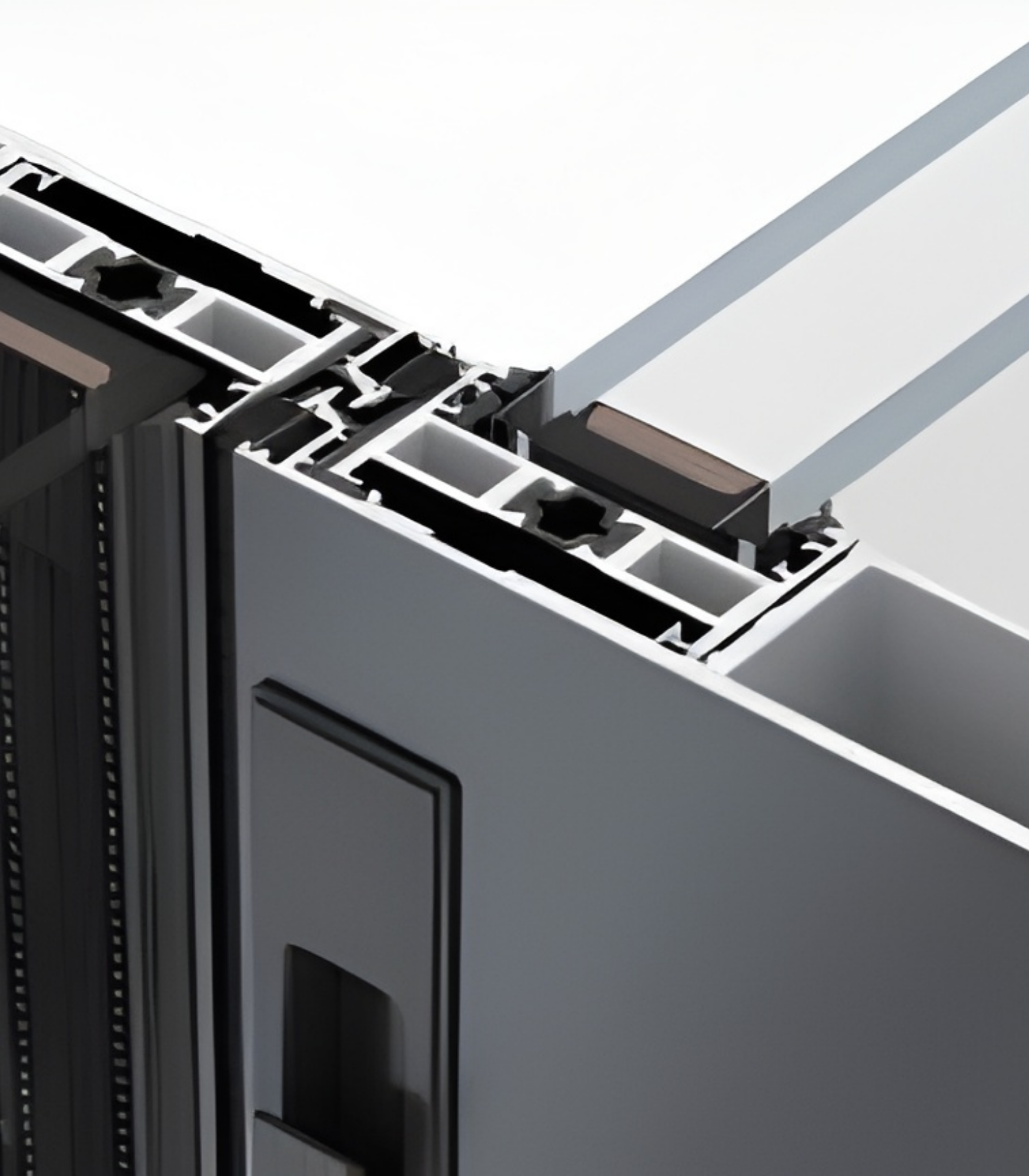

The glide is the thing people comment on first. Each panel rides on stainless steel bearings, which means the weight of a 300-pound panel moves with two fingers. No lift, no torque, no wrestling. The rollers are designed for decades of use without binding, which matters in a coastal environment where cheap steel hardware corrodes within a few years. The frame is extruded aluminum with a 0.138-inch wall thickness, substantial enough to hold large glass units without flexing, but shaped so the sightlines stay thin. The result is a door that feels like commercial-grade equipment but looks like an architectural feature.

Technical Specifications

Here’s what the VLX 138 Panoramic Sliding Door is built from and what you can order it with. We’ve installed enough of these in Long Beach to help you sort through the options without getting lost in a spec sheet.

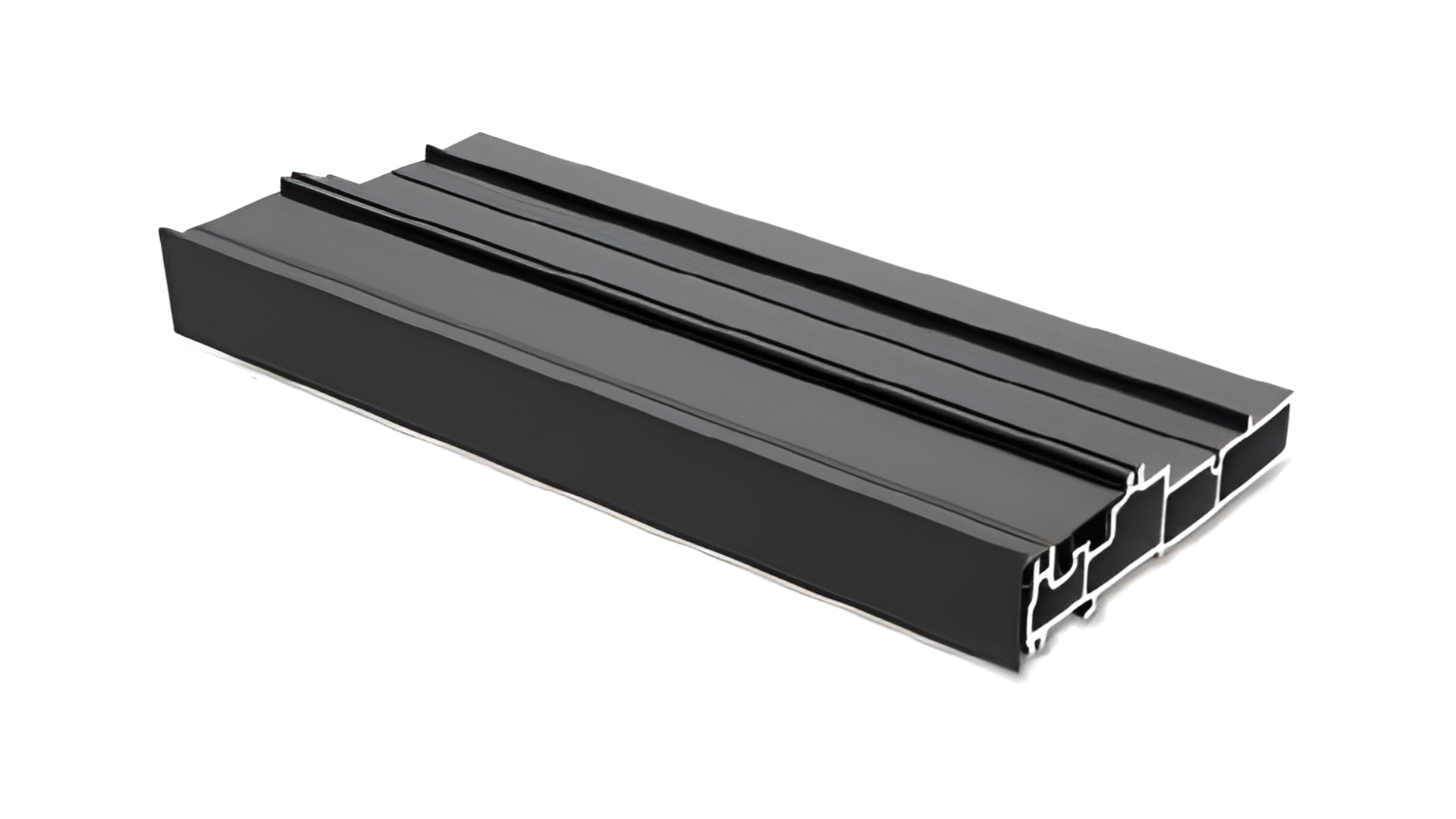

• Frame wall thickness: 0.138 inches of extruded aluminum, which gives the door its structural backbone while allowing those narrow sightlines.

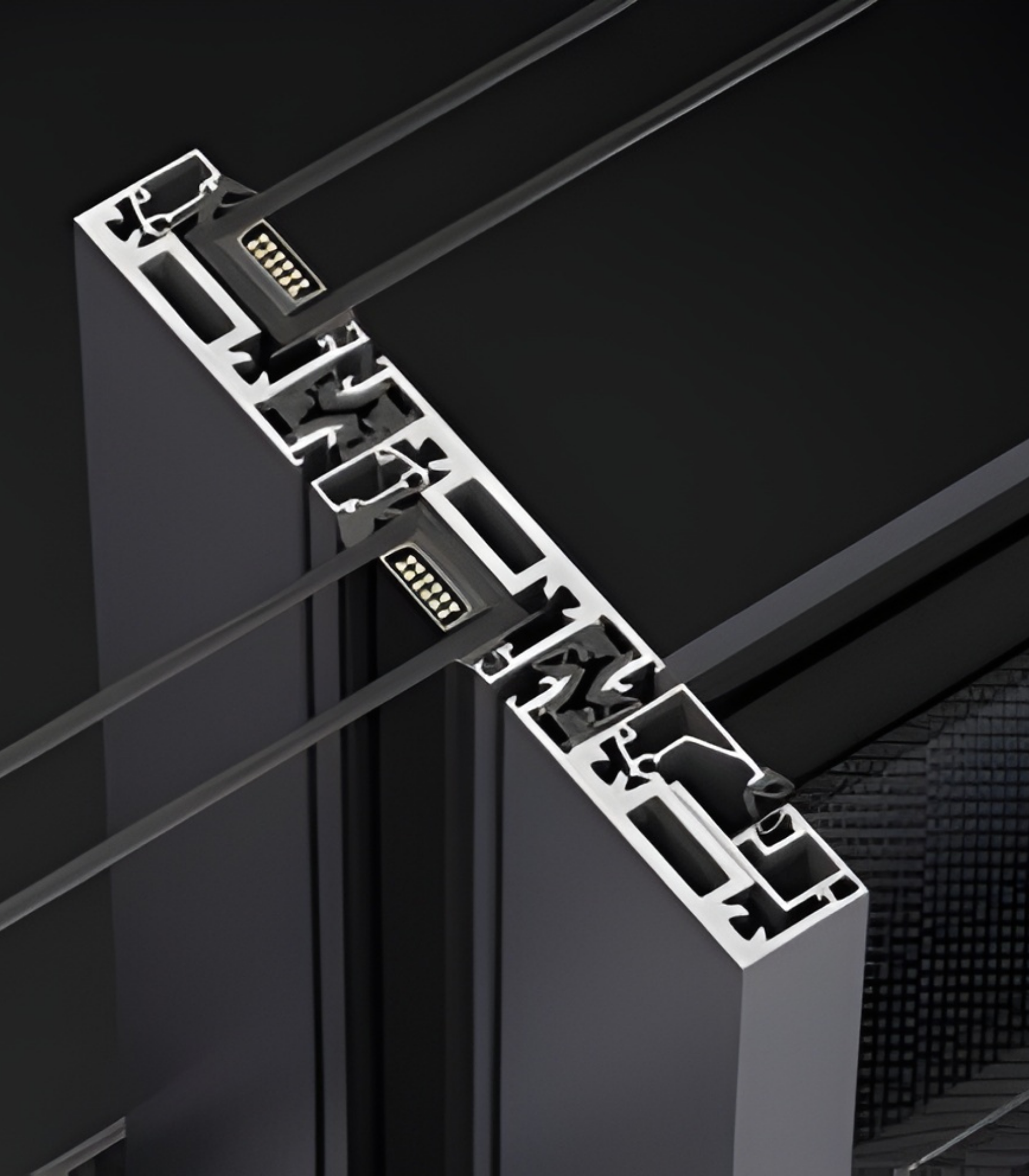

• Profile width: 1.535 inches on the interlock stiles, so when closed, the vertical lines between panels stay clean and minimal.
• Maximum span: Up to 36 feet wide depending on panel count and track configuration. Most Long Beach homes land somewhere between 12 and 24 feet.
• Track configurations: 2-track, 3-track, and 4-track systems. More tracks mean more panels and a larger clear opening when everything is stacked.
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, and Gray Tint. Glass type affects heat gain, privacy, and the look from the street or alley.
• Frame finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. All are factory-applied finishes, not site-painted.
• Screen options: Retractable screen or sliding screen, depending on how much cross-breeze you want and how often you’ll use the door as the primary opening.

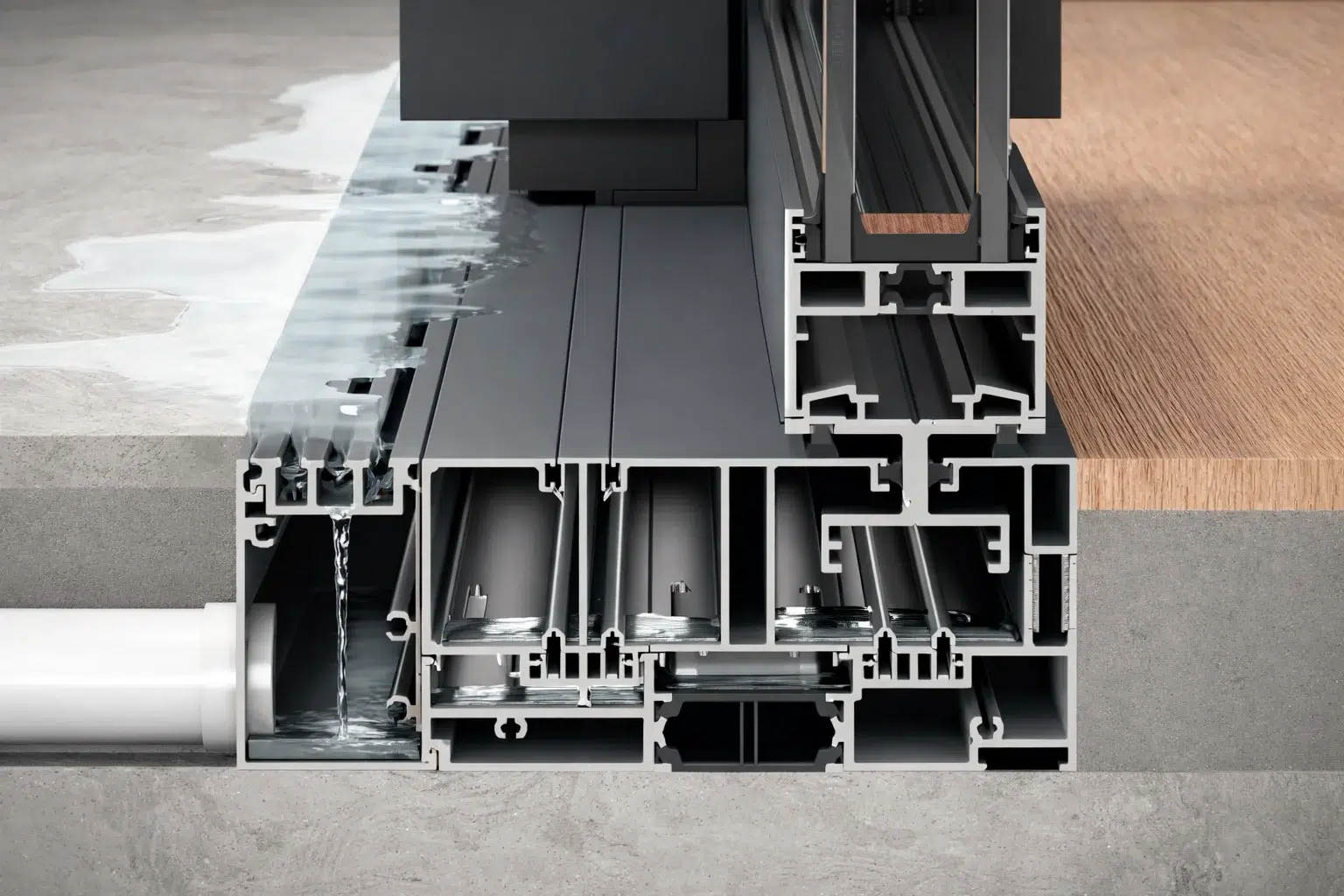

• Sill options: Flush sill for zero threshold transition, low-profile sill for a minimal step, or recessed sill for a fully embedded floor track.

Performance Features

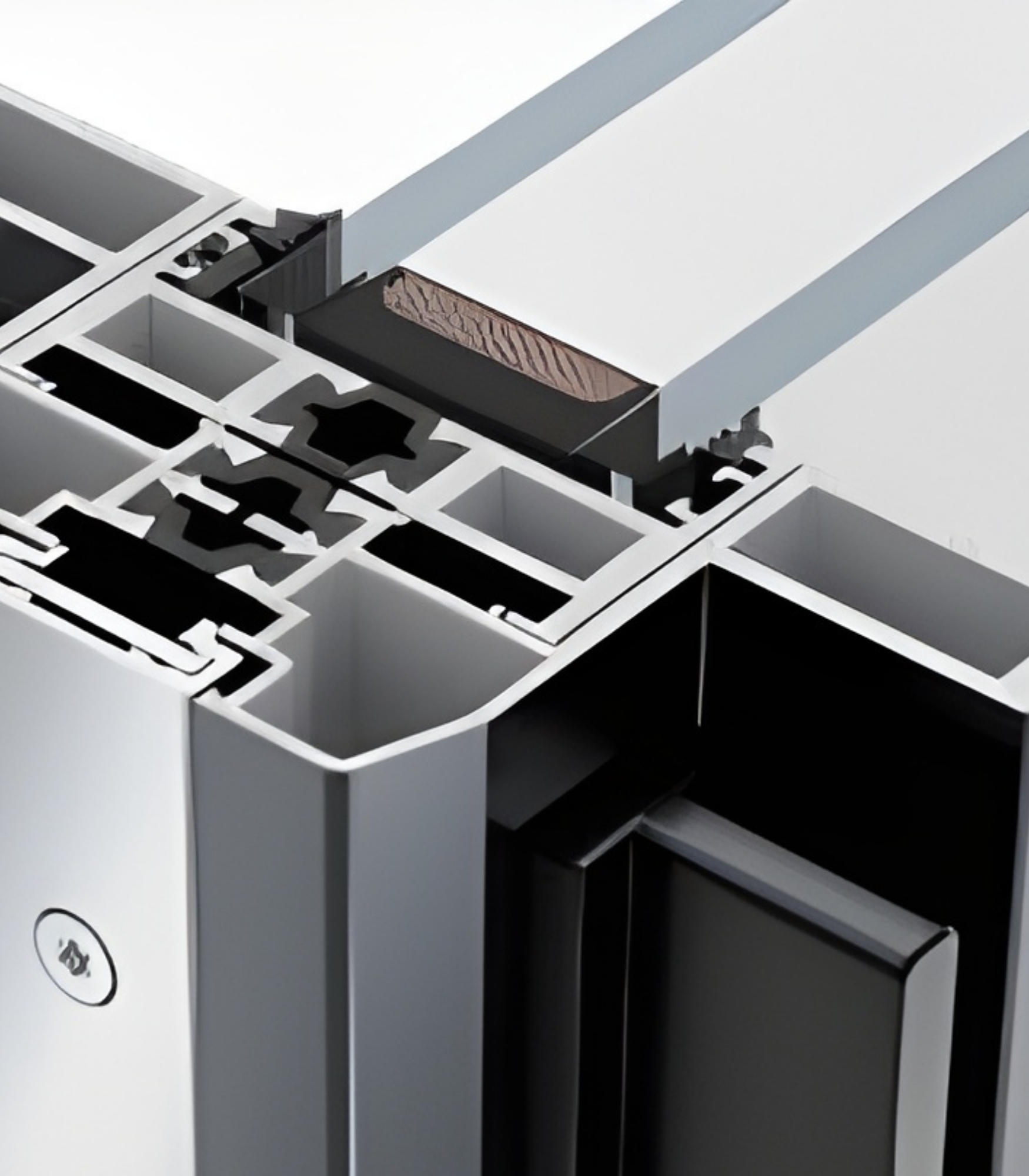

Thermal Efficiency. The VLX 138 frame is built with a thermal break, separating the interior and exterior aluminum so heat doesn’t transfer through the metal itself. Combined with Low-E glass, the door earns NFRC ratings that meet or exceed California Title 24 energy code requirements in the Long Beach climate zone.

Acoustic Performance. Long Beach has real noise: the 405, the 710, jets approaching Long Beach Airport, and the general hum of a dense coastal city. The VLX 138’s multi-point locking and compression gasketing reduces sound transmission noticeably when closed, and laminated glass upgrades push the STC rating higher for high-noise lots.

Airtightness & Weather Seal. Compression seals along all four edges of every panel mean the door is genuinely airtight when closed. That’s not just comfort; it’s why the door doesn’t whistle during Santa Ana wind events and why your HVAC doesn’t work overtime in August.

Waterproofing. The sill system and interlocking panel design channel water outward, not inward. During our installation process in Long Beach, we apply AAMA 812 low-expansion foam sealant at every perimeter joint, which is the standard that keeps blow-in rain and window-washing overspray from ever reaching your flooring.

Wind Resistance. VLX 138 units are wind-load rated for the exposure conditions we actually see on Long Beach hillside lots and bluff-facing properties. That matters more than people realize when a 20-foot glass wall is the only thing standing between your living room and a 40 mph gust off the water.

Security & Hardware. Multi-point locking engages at several points along the panel height, not just a single latch at the center. The hardware is stainless steel, which holds up to Long Beach’s salt air. Optional impact-resistant laminated glass holds the pane together even under severe impact, a real consideration for ground-floor doors on alley-facing lots.

Color & Glass Options

The VLX 138 comes in six factory finishes. Premium Black and Anodized Silver are the two we order most often for modern and contemporary Long Beach homes, whether that’s a new build in the Zaferia district or a gut-remodel in Belmont Heights. Pure White suits the classic California beach cottage look, especially with wood siding or stucco painted white. Bronze and Champagne work beautifully on Spanish Revival and Mediterranean homes in Los Altos and Park Estates, where the frame needs to recede against warm tones rather than contrast with them. Teak Wood is the choice when you’re matching wood-trimmed interiors or want the warmth of timber without the maintenance of real wood frames in salt air.

Glass choice depends on orientation and privacy. Clear glass maximizes the view but lets in the most heat. Low-E is the default for west-facing Long Beach walls that take the afternoon sun. Frosted and Obscure glass are for bathrooms, side yards, or ground-floor bedrooms where you want light but not sightlines. Black Tint and Gray Tint reduce glare and heat gain while keeping the view visible, and they look sharp against lighter interior walls. Impact-resistant laminated glass is available for anyone who wants the extra security layer, particularly on doors facing a busy street or alley.

Installation by Lightwell Windows Long Beach in Long Beach

We’re not a sales office that subcontracts the work to whoever’s available. Lightwell Windows Long Beach installs every door we sell, and we install the VLX 138 the way the manufacturer intends: level, plumb, square, and sealed to AAMA 2400/2410 installation standards. That matters because a panoramic slider this large leaves zero room for sloppy work. A 24-foot door that’s even 1/8 inch out of level will bind, drag, or wear the rollers unevenly.

Our process starts before installation day. We visit the home in Long Beach, verify the rough opening dimensions ourselves, check the framing condition, and confirm the sill height works with your flooring plan. On install day, we set the frame true in all three planes, shim it precisely, and anchor it to the structure. Then we apply AAMA 812 low-expansion foam at every perimeter joint, which seals against air, water, and sound while accommodating thermal movement. We finish with a water test on the sill and threshold, clean the job site, and walk you through operating the panels and screensor lock points.

One thing worth stating plainly: improper installation voids the manufacturer warranty. We’ve seen panoramic sliders in Long Beach installed by general contractors who didn’t understand the sill waterproofing sequence or didn’t shim the frame to the manufacturer’s gap tolerances. When that door leaks or stops sliding, the manufacturer won’t cover it. Buying through an authorized ViewLux partner like us keeps your warranty intact and gives you one accountable party for both product and installation. In Long Beach, where older homes often have settled framing and out-of-square openings, that expertise is the difference between a door that works for three decades and one that fights you from day one.

Frequently Asked Questions – VLX 138 Panoramic Sliding Door

Get a Quote – VLX 138 Panoramic Sliding Door in Long Beach

If you’re planning a panoramic sliding door in Long Beach, the next step is a real quote based on your actual opening, not a ballpark. Call Lightwell Windows Long Beach at (562) 912-3327 and we’ll schedule a free on-site measurement, walk you through the options that fit your home, and put a fixed price in writing before any work begins.
